# plotor

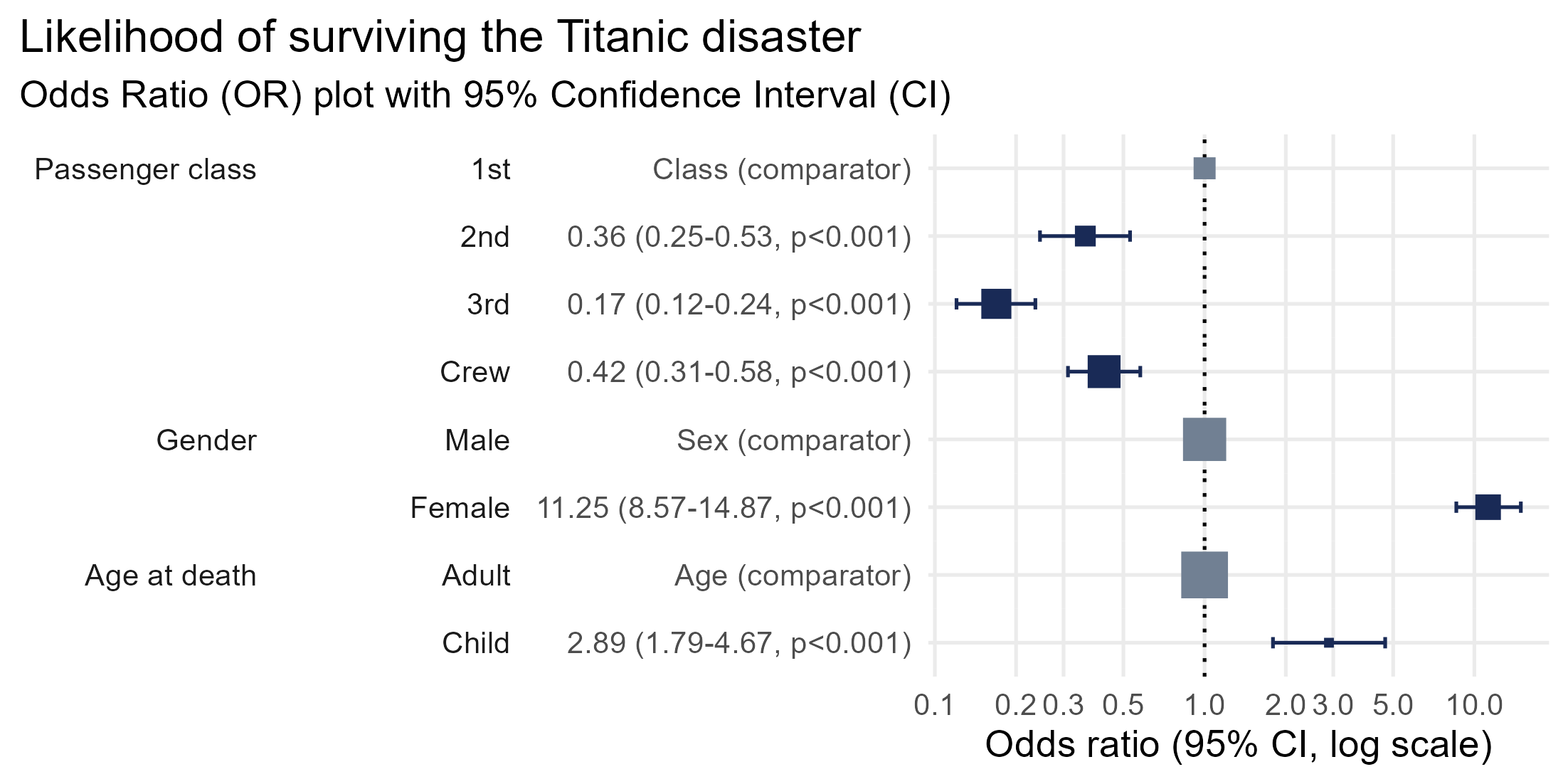

The goal of plotor is to generate Odds Ratio plots from logistic regression models.

## Installation

You can install the development version of plotor from GitHub with:

``````# install.packages("devtools")
devtools::install_github("craig-parylo/plotor")``````

You can also install the latest released version from Cran with:

``install.packages("plotor")``

## Example

In this example we will explore the likelihood of surviving the Titanic disaster based on passenger economic status (class), sex, and age group.

In addition to `plotor` the packages we will use include `dplyr`, `tidyr` and `forcats` for general data wrangling, the `stats` package to conduct the logistic regression followed by `broom` to tidy the output and convert the results to Odds Ratios and confidence intervals, then `ggplot2` to visualise the plot.

``````library(plotor)      # generates Odds Ratio plots
library(datasets)    # source of example data
library(dplyr)       # data wrangling
library(tidyr)       # data wrangling - uncounting aggregated data
library(forcats)     # data wrangling - handling factor variables
library(stats)       # perform logistic regression using glm function
library(broom)       # tidying glm model and producing OR and CI
library(ggplot2)     # data visualisation``````

``````df <- datasets::Titanic |>
as_tibble() |>
# convert counts to observations
filter(n > 0) |>
uncount(weights = n) |>
# convert categorical variables to factors.
# we specify an order for levels in Class and Survival, otherwise ordering
# in descending order of frequency
mutate(
Class = Class |>
fct(levels = c('1st', '2nd', '3rd', 'Crew')),
Sex = Sex |>
fct_infreq(),
Age = Age |>
fct_infreq(),
Survived = Survived |>
fct(levels = c('No', 'Yes'))
)``````

We now have a tibble of data containing four columns:

• `Survived` - our outcome variable describing whether the passenger survived `Yes` or died `No`,

• `Class` - the passenger class, either `1st`, `2nd`, `3rd` or `Crew`,

• `Sex` - the gender of the passenger, either `Male` or `Female`,

• `Age` - whether the passenger was an `Adult` or `Child`.

We next conduct a logistic regression of survival (as a binary factor: ‘yes’ and ‘no’) against the characteristics of passenger class, sex and age group. For this we use the Generalised Linear Model function (`glm`) from the `stats` package, specifying:

• the family as ‘binomial’, and

• the formula as survival being a function of `Class`, `Sex` and `Age`.

``````# conduct a logistic regression of survival against the other variables
lr <- glm(
data = df,
family = 'binomial',
formula = Survived ~ Class + Sex + Age
)``````

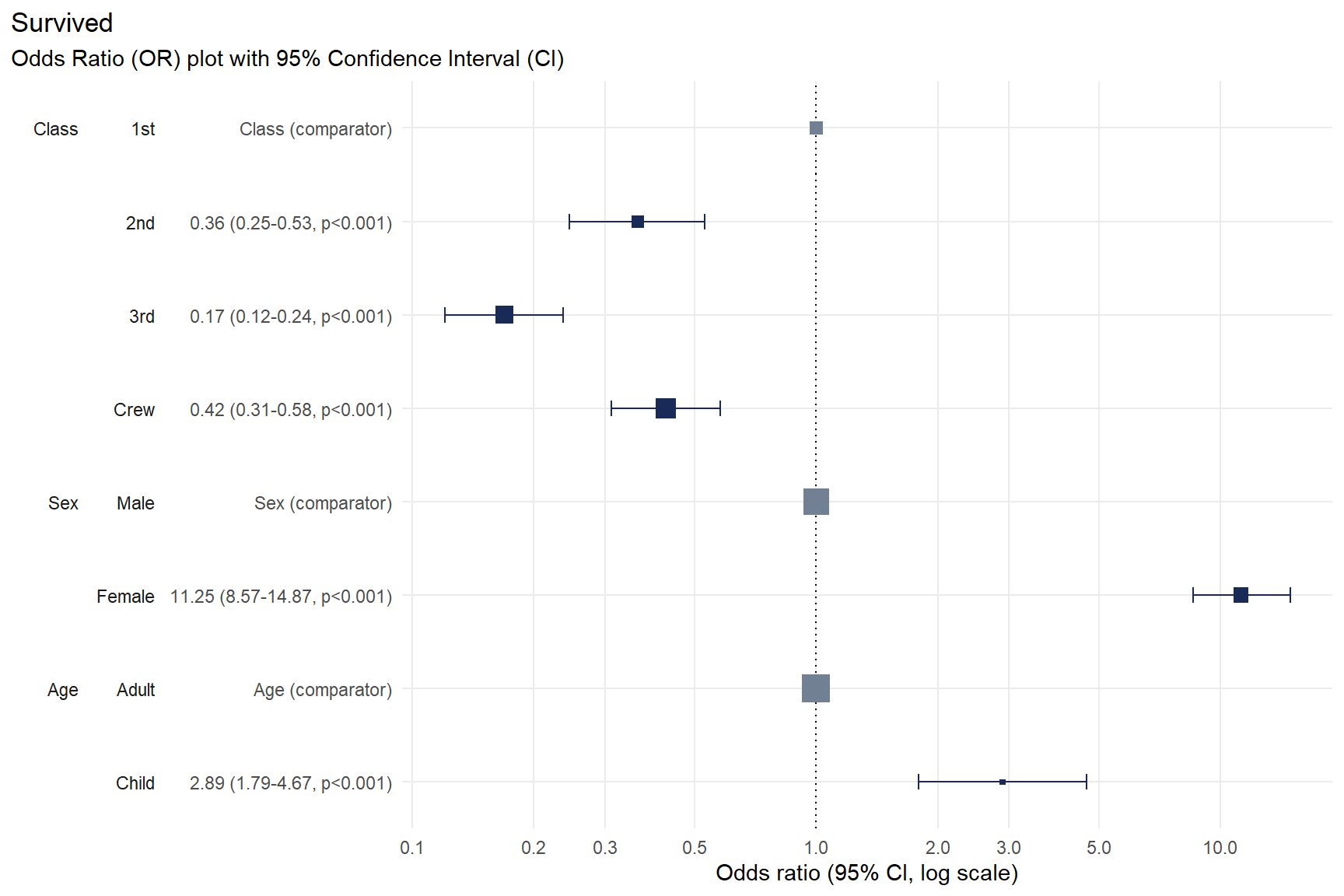

Finally, we can plot the Odds Ratio of survival using the `plot_or` function.

``````# using plot_or
plot_or(glm_model_results = lr)``````

This plot makes it clear that:

• Children were 2.89 times more likely to survive than Adults,

• Passengers in `2nd`, `3rd` class as well as `Crew` were all less likely to survive than those in `1st` class,

• Women were 11.25 times more likely to survive than men.
